Packaging & Delivery
| Packaging Details: | According to customers requirement. |
|---|---|
| Delivery Detail: | Shipped in 90 days after payment |

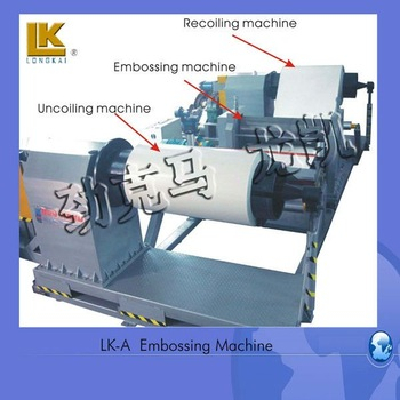

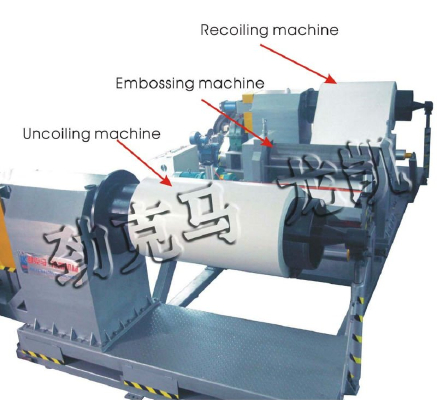

Steel Structure Machine Line
Performance & Characteristics:
1. High -precision feeder guarantee feeding stably and high efficency.
2. It is easy to operate machine and improve the work efficency greatly , working speed setting in advance.
3.The complete machine features humanization design.
4.Embossing aluminium sheet procution ,adopted double surface embossed patterns technique.
5.It appiled to processing stucco or diamond effect.
Technical Data:
| Coil diameter | 505mm |
| Loading | 5000kg |
| Unrolling power | Magnetic powder broker |
| Unloading the coil | By crane |
| Unrolling and rolling | can be moved right and left |
| Size of roller | Dia.380-400*1400mm |
| Motor power | Rolling motor 18.5kw |
| Moving motor | 0.75kw |
| Embossing motor | 11.0kw |
| Rolling speed | 0-28m/min |
Coiled material specification:
| Material and thickness | Aluminum foil:0.3-1.0mm Color coating plate: 0.18-0.5mm Stainless steel sheet: 0.3-0.7mm |
| Width | 1400mm,or according to the request |
| Length | According to the request |
| Pattern | Rain drop or customize |
Delivery terms:
1. Sample is free.
2. Time of delivery: about 90 days
3. Trade terms: FOB , CIF, CRF
4. Term of payment: L/C , T/T
5. Packagin: Fixed by steel wire put in container ,or according customer request.
