Packaging & Delivery
| Packaging Details: | According to customers requirement. |
|---|

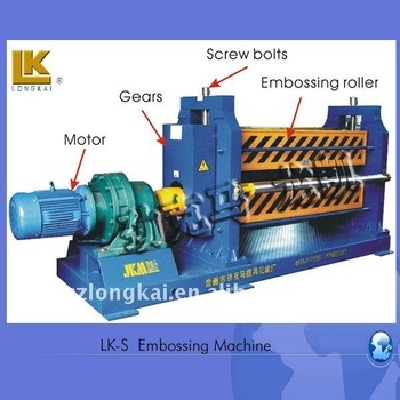

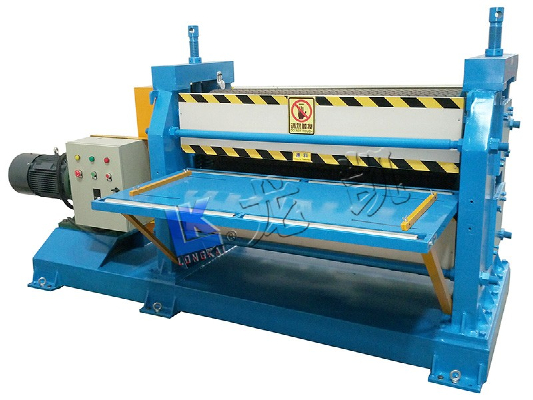

Metal Sheet Processing Machinery
Processing machine Feature:
1.This model is suitable for metal sheet within 1.5mm,.
2.Steel structure machine make from quality steel is heavy-duty.
3.Embossing by inner rolling way
4.Patten of embossing rollers can be
designed according to customers' request.
5.The sheet and board will be strengthed and rigidity more after embossing.
Technical parameters:
| Techical date | 3300*1200*1500mm |
| Roller size | diameter 400*1400mm,or according to request. |
| The material of rollers | 40Cr/42CrMo/60CrMnMo/9Cr2/9CrMo |
| Way of embossing | the male and female rollers press esch other up and down |
| Pressing adjustment | by screw bolts |
| Motor power | 11kw |
| PLC speed | 0-25m/min |
| Size of target sheets | 0.3-1.5*1250mm |
| Pattern | stone effect ,or according to customers' need. |
Delivery terms:
1. Sample is free.
2. Time of delivery: about 45 days
3. Trade terms: FOB , CIF, CRF
4. Term of payment: L/C , T/T
5. Packaging: export packing ,or according customers' request.
